A Christmas tree–shaped light frame designed as an interactive photo installation for outdoor public spaces. Built with a durable iron frame, waterproof LED light strings, and epoxy-coated lighting elements, the structure creates a clear illuminated Christmas tree outline and works well as a festive photo backdrop. It is weather-resistant, customizable in size, and suitable for streets, parks, commercial plazas, shopping centers, and large holiday displays.
Produced by HOLILITE with a typical production time of 10–15 days and a 1-year warranty. Size, proportions, lighting layout, decorative details, and installation method can be customized according to project requirements.

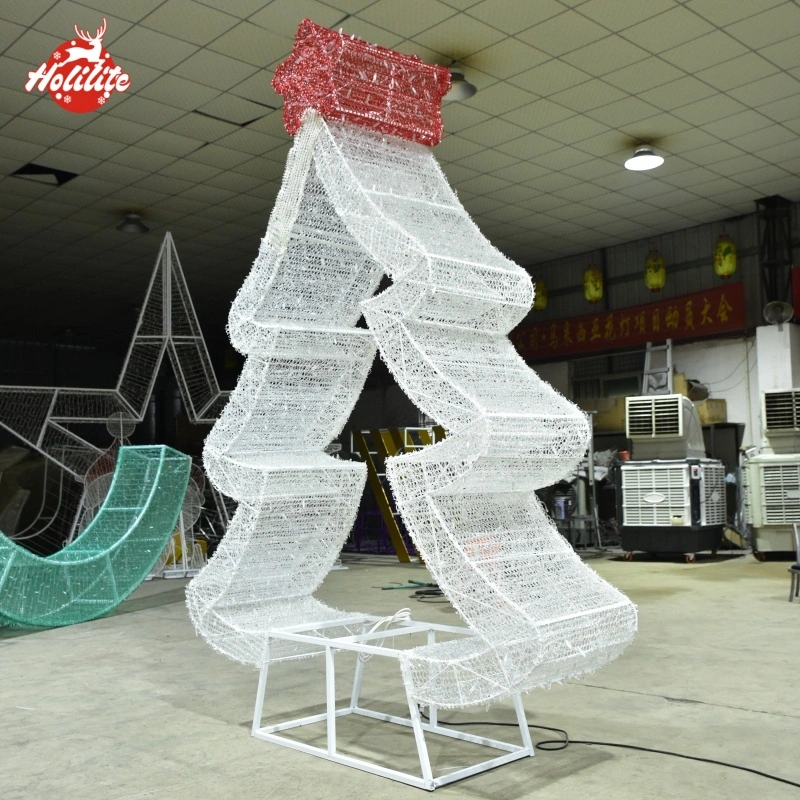

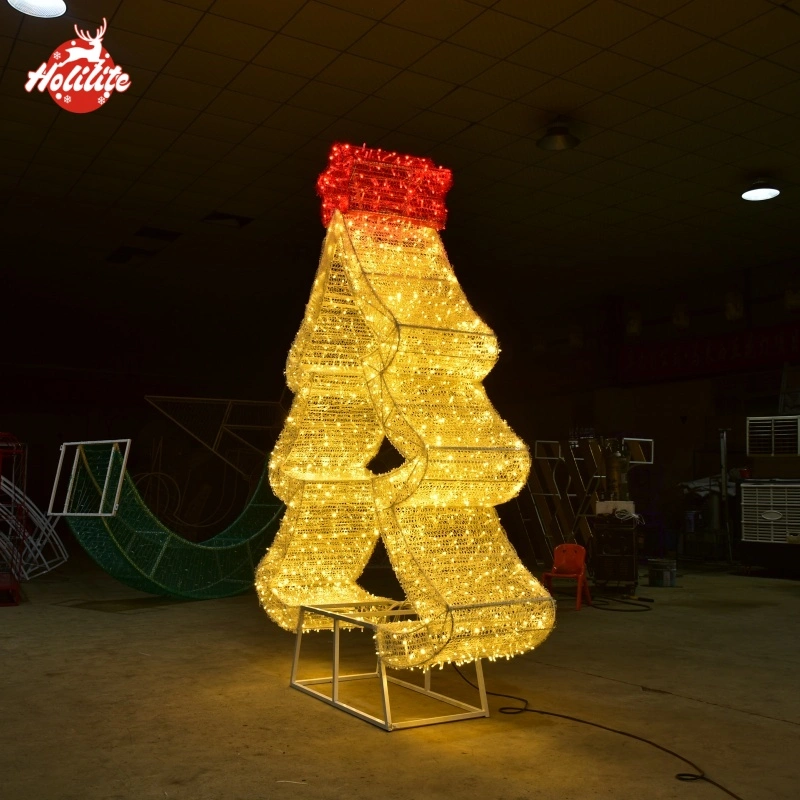

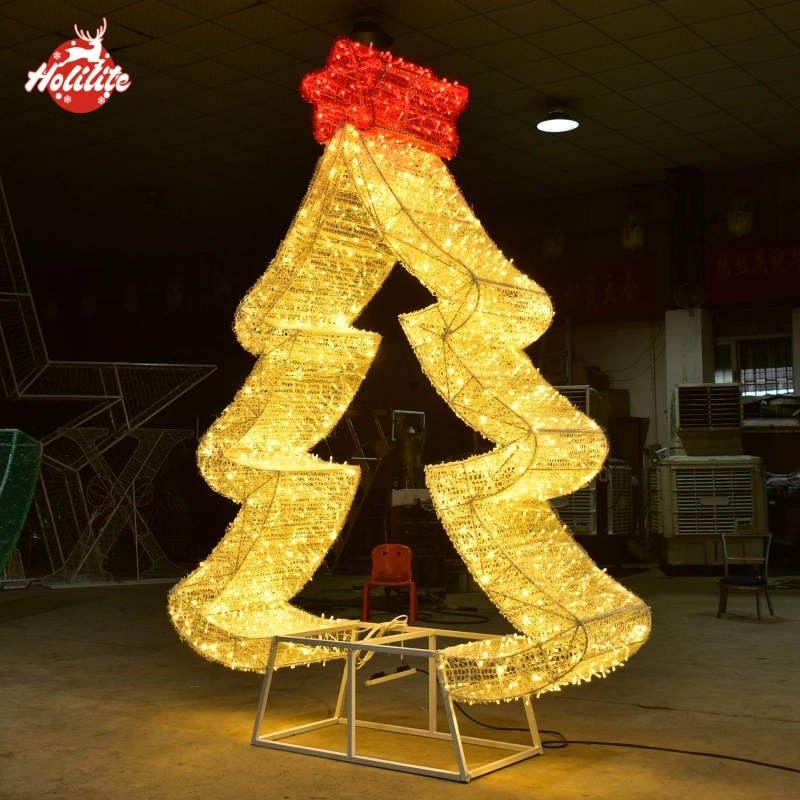

This outdoor Christmas tree light sculpture uses a reinforced iron frame, waterproof LED light strings, a hollow tree-shaped structure, and an illuminated red star. The model shown uses warm white lighting on the main body and a freestanding metal base.
Height, width, frame proportions, lighting density, light color, star design, base structure, and electrical configuration can be adjusted for different commercial holiday projects.
| Parameter | Specification |
|---|---|
| Product Type | Outdoor Christmas Tree Light Sculpture |
| Main Structure | Reinforced iron frame |
| Design | Hollow Christmas tree outline with curved illuminated structure |
| Lighting Source | Outdoor waterproof LED light strings |
| Lighting Protection | Epoxy-protected lighting elements for outdoor applications |
| Light Color | Warm white tree body and red star as shown; other colors available |
| Size | Customizable according to project requirements |
| Voltage | 24V / 110V / 220V configurations available according to destination market and lighting system |
| Waterproof Configuration | IP65 / IP66 lighting configurations available according to selected components and project requirements |
| Installation | Freestanding metal base with project-specific fixing options |
| Structure | Complete or modular structure depending on product dimensions and shipping requirements |
| Production Time | Approximately 10–15 days after design confirmation |
| Warranty | One year |
| Applications | Parks, plazas, shopping malls, hotels, resorts, streets, tourist attractions, event venues, and municipal festive projects |
The sculpture uses an iron frame to form the curved Christmas tree outline and support the LED lighting system. Frame dimensions and reinforcement are adjusted according to the final height, width, base dimensions, and installation conditions.
Outdoor protective treatment can be applied to the frame according to the installation environment. Large versions can also include additional reinforcement at structural joints and base connection points.
Waterproof LED light strings are installed along the curved frame. The model shown uses warm white lighting for the tree body and red lighting for the top star.
Lighting density, LED spacing, cable layout, and circuit configuration can be adjusted according to the size of the sculpture. IP65 or IP66 configurations can be selected according to the lighting components and project requirements.
Warm white, cool white, red, green, blue, and other single-color configurations.
Multicolor combinations can be configured for themed commercial projects.
RGB configurations are available where project lighting control requires color-changing effects.
Static lighting or dynamic effects can be selected when required.
The star color and main tree lighting can be configured separately.
This product is manufactured according to project requirements rather than one fixed standard size.
Custom options include:
For quotation and structural confirmation, buyers can provide the required overall size, site dimensions, installation photos, or project drawings.
The sculpture shown uses a rectangular freestanding metal base. Base dimensions and reinforcement are adjusted according to the size and weight of the finished structure.
The installation solution can be selected according to:
Additional anchor points or mechanical fixing can be added where required.
24V, 110V, and 220V configurations are available according to the destination country and selected lighting system.
The electrical design can include:
The final voltage and electrical layout are confirmed before production.
Large Christmas tree sculptures can be divided into structural sections when one-piece transportation is impractical.
A modular structure can reduce shipping volume and simplify:
Connection points and structural sections can be identified before shipment to support on-site assembly.
Large Christmas focal points for entrances and commercial outdoor areas.
Freestanding festive sculptures for public and event spaces.
Outdoor installations for seasonal exhibitions and festive landscapes.
Large illuminated decorations for municipal Christmas programs.
Suitable for entrances, landscaped areas, and guest activity zones.
Large decorative lighting for high-traffic commercial streets.
Illuminated landmarks for scenic areas and visitor routes.
Seasonal lighting focal points for market and event environments.
Large Christmas lighting elements for themed festive zones.
Suitable for coordinated city festive lighting programs.
The tree sculpture can be installed independently or combined with other large decorative lighting products, including:
| Item | Custom Options |
|---|---|
| Size | Height, width, depth, and overall proportions |
| Tree Shape | Curve position, outline proportions, and hollow-center width |
| Frame | Frame dimensions and reinforcement according to final size |
| Lighting Color | Warm white, cool white, single colors, multicolor, or RGB |
| Lighting Density | Adjusted according to product size and required visual effect |
| Top Star | Size, color, lighting, and proportions |
| Voltage | 24V / 110V / 220V according to project requirements |
| Base | Dimensions and fixing points customized according to installation conditions |
| Structure Division | Complete or modular construction according to shipping requirements |
Packaging is selected according to the size and structure of the finished product. The frame, lighting system, star, electrical components, and connection hardware are protected separately where necessary.
Large modular sections can be packed and numbered individually to simplify unloading and assembly after arrival.
The structure can be reused for multiple holiday seasons. After dismantling, frame sections, electrical components, and lighting connections should be stored in a dry location and protected from impact.
Before reinstallation, the frame joints, base, cables, connectors, and LED lighting should be inspected.
Approximately 10–15 days after final design confirmation.
Structural joints and base checked before shipment.
LED lighting system tested before packing.
Power supply, cables, and connectors checked according to the final configuration.
One-year warranty covering manufacturing defects.
Product and project design according to site and visual requirements.
Final dimensions confirmed according to available installation space.
Frame dimensions, reinforcement, base, and modular design planning.
Light color, density, spacing, and lighting layout planning.
Voltage, wiring, connectors, and circuit configuration support.
Manufacturing and quality inspection according to approved project details.
Packaging selected according to product dimensions and shipping requirements.
Support for modular assembly and structural connection procedures.
Project-specific installation drawings can be provided.
Additional installation support can be provided according to project requirements.
Please provide:
HOLILITE can confirm the frame dimensions, lighting configuration, base structure, electrical system, modular division, and packing method based on this information.
No. The hollow center is part of the Christmas tree outline. This model uses a freestanding structural base and is not designed as a walk-through installation.
Yes. Height, width, depth, tree proportions, star size, lighting density, and base dimensions can be customized according to the project.
Yes. The product uses an iron frame and outdoor waterproof LED lighting. IP65 or IP66 lighting configurations can be selected according to project requirements.
The model shown uses warm white lighting on the tree body and red lighting on the star. Other single-color, multicolor, and RGB configurations are available.
24V, 110V, and 220V configurations are available according to the destination market and selected lighting system.
Yes. Star size, color, lighting, and proportions can be adjusted together with the main tree structure.
The product uses a freestanding metal base. Additional anchoring or mechanical fixing can be added according to the product size and site conditions.
Yes. Large structures can be manufactured in modular sections to simplify container loading, transportation, assembly, and storage.
Yes. The metal structure and lighting system can be reused for multiple holiday seasons when correctly dismantled, stored, inspected, and maintained.
Standard production time is approximately 10–15 days after the final design and technical details are confirmed. Large or complex projects may require additional time.
Yes. HOLILITE can provide assembly guidance, installation drawings, electrical connection guidance, and project-specific installation support.
A one-year warranty covering manufacturing defects is provided.
