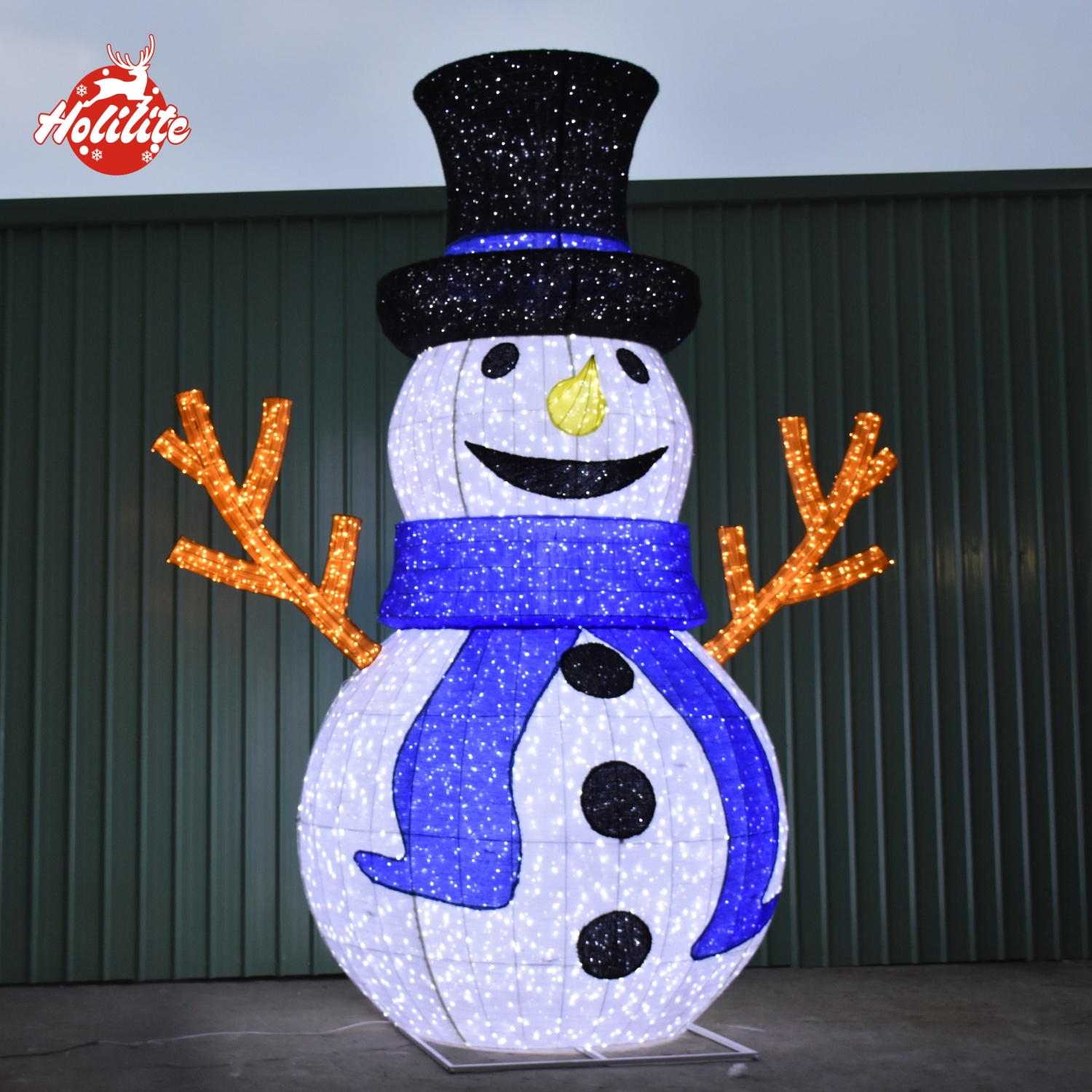

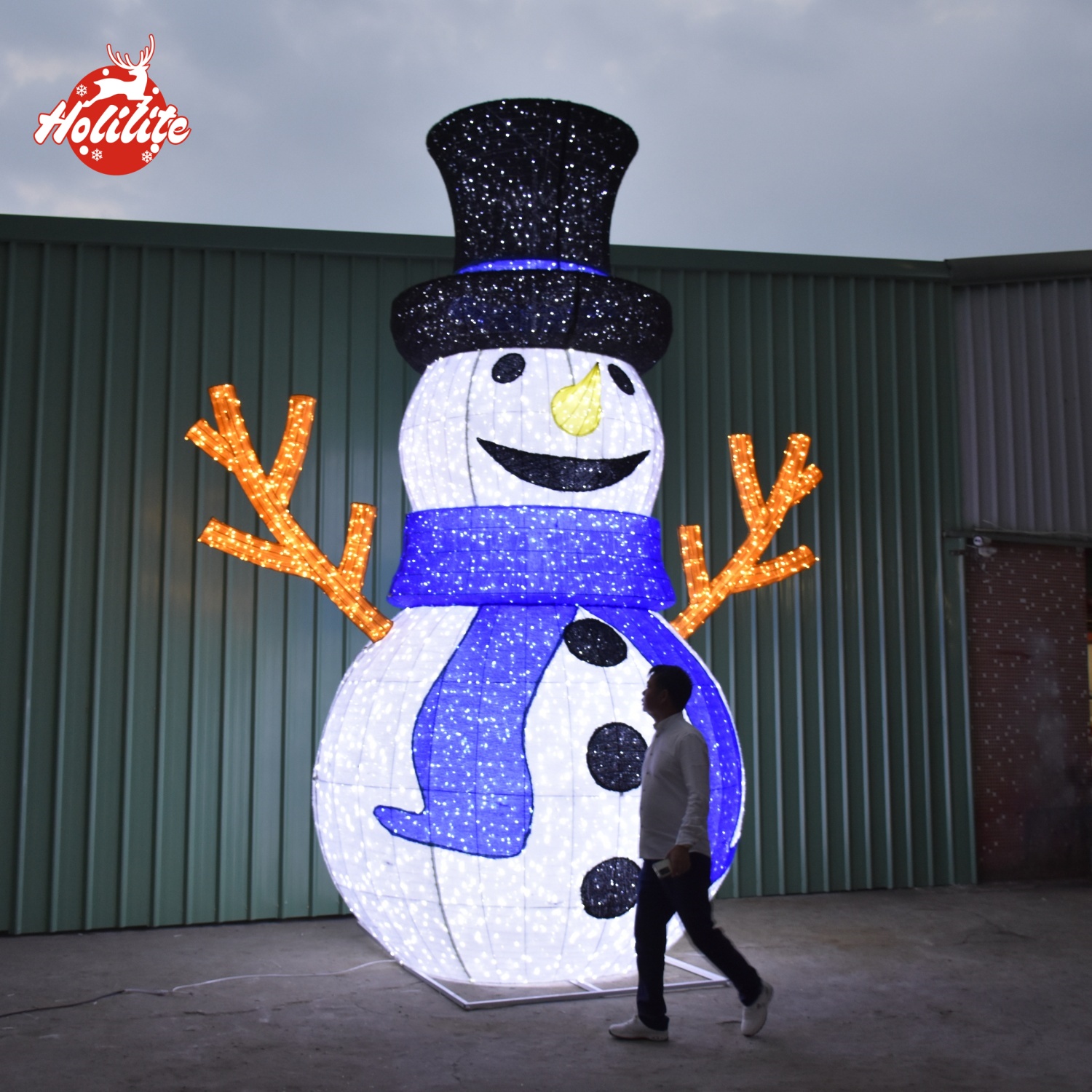

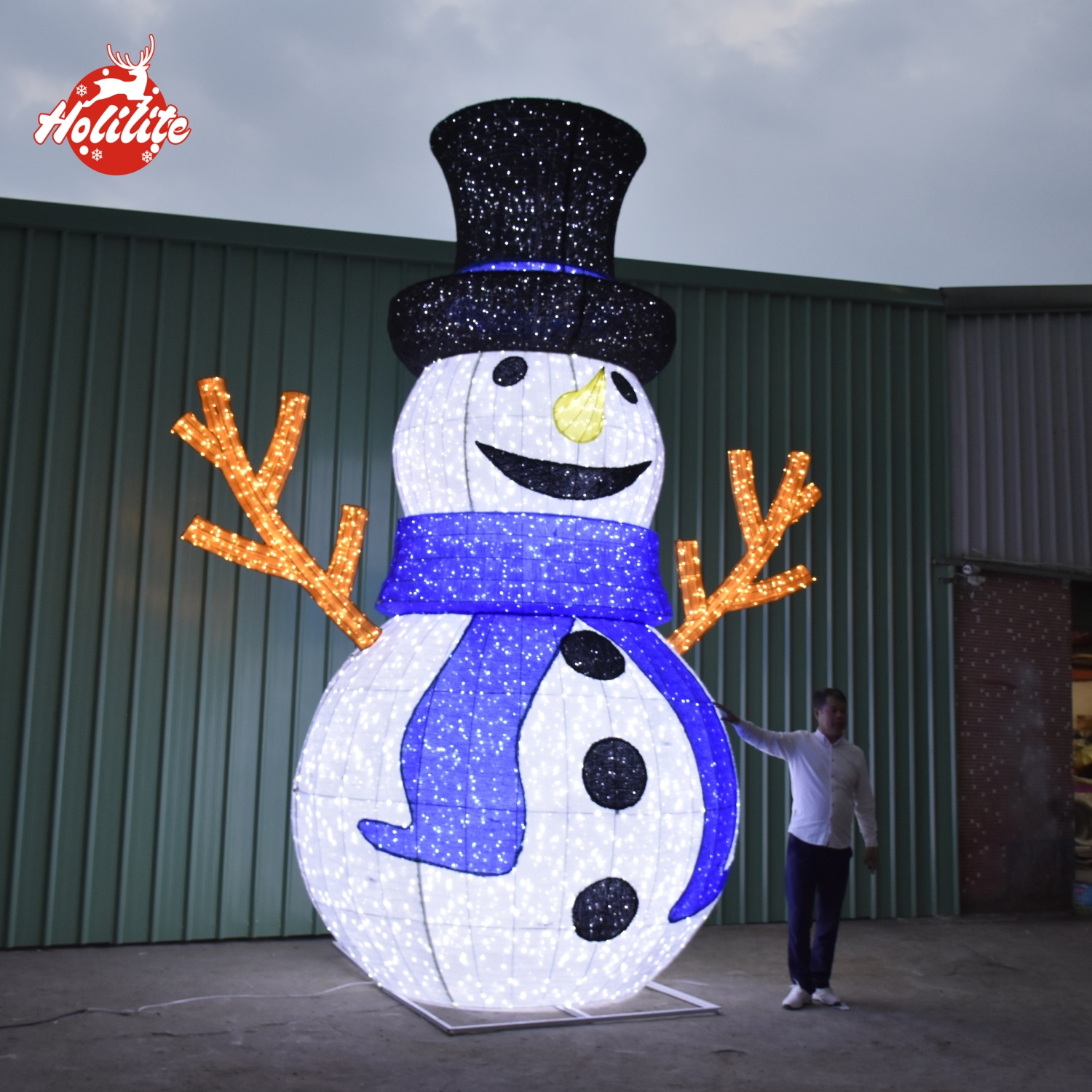

The HOLILITE 5M giant illuminated snowman is designed for winter light festivals, theme parks, scenic areas, commercial plazas, and municipal holiday projects. The structure combines a galvanized steel frame, outdoor LED light strings, and decorative surface materials. Size, color, shape, electrical configuration, and installation structure can be customized to project requirements.
The 5M structure uses a modular design. Steel framing, welding, lighting installation, surface finishing, and trial assembly are completed at the factory. The structure is then separated into transport modules for on-site connection, electrical hookup, and ground anchoring.
5M
Modular
Outdoor LED
10–15 Days
1 Year
| Product Name | Giant Illuminated Snowman | Standard Height | 5M |
| Main Structure | Galvanized Steel Frame | Structure Type | Modular Steel Structure |
| Lighting System | Outdoor LED Light Strings | Light Color | Customized by Project |
| Surface Material | Glitter Fabric / Tinsel | Decorative Colors | Customized to Design |
| Input Voltage | Configured for Destination Market | Plug Standard | Configured by Country |
| Installation | Ground Mounted | Transport | Modular Disassembled Shipping |
| Production Time | 10–15 Days | Warranty | 1 Year |
| Customization | Size / Color / Shape / Lighting | Project Support | Design / Production / Installation Guidance |
The internal steel frame forms the head, body, base, arms, hat, and decorative components. Steel tubes are cut, bent, welded, and aligned to form the final profile.
Large curved sections require accurate symmetry, body proportion, and continuous frame lines. The completed frame is checked for overall height, width, connection points, and external profile.
The 5M snowman is divided into multiple modules based on structural shape and transport dimensions. The head, body, base, and projecting decorative parts use separate connection points.
Module dimensions are planned around container loading, site handling, and installation space. The separated structure reduces shipping volume and supports step-by-step assembly on site.
Steel connection points are positioned and trial-fitted at the factory. Matching modules use prepared connectors, with installation direction and module numbering confirmed before packing.
The steel frame defines the final snowman profile. Head diameter, body proportions, shoulder curves, base width, and decorative components follow the approved drawing.
The hat, scarf, arms, buttons, facial details, and other decorative elements are fabricated separately and assembled with the main structure.
Clear long-distance visibility depends on the overall silhouette. Production checks focus on curve continuity, left-right balance, and the position of decorative components.
Profile
Head, body, shoulder curves and base proportions.
Symmetry
Left-right balance and continuous structural curves.
Detail Position
Hat, scarf, arms, buttons and facial components.
Outdoor LED light strings are installed along the steel frame and surface areas. Light density is selected according to product size, surface material, and target brightness.
Glitter fabric covers the main body and creates a continuous white snowman surface. The fine reflective texture maintains a complete daytime appearance and produces a soft sparkle under LED lighting.
Tinsel creates a stronger reflective texture. LED light passing through and across the surface produces a brighter festive sparkle suited to classic Christmas displays and high-impact seasonal projects.
The lower steel frame connects the snowman body to the installation surface. Base dimensions are adjusted according to product width, total weight, and anchoring method.
Commercial plazas, paved parks, and permanent foundations can use steel base plates with expansion bolts or embedded anchors.
Light festivals and temporary event grounds require a site-specific anchoring solution. Fixing components and installation methods are confirmed from the site information before production.
Wind load changes with product size and shape. The anchoring plan is confirmed from local wind conditions, installation height, foundation type, and surrounding site conditions.
Check All Modules
Verify the main body, head, base, decorative parts, electrical components, and installation hardware against the packing list.
Position the Base
Set the final snowman direction and center point according to the site layout.
Install the Lower Structure
Connect the base and lower body sections.
Connect Upper Modules
Install the body, head, and separate structural components in sequence.
Install Decorative Components
Fit the hat, scarf, arms, and other external decorative parts.
Connect Lighting Circuits
Connect the matching electrical interfaces according to module numbers.
Anchor the Base
Secure the structure using the approved anchoring method.
Power-On Inspection
Check all lighting zones, electrical connections, and the complete illuminated appearance.
Steel Fabrication
Steel components are cut, bent, welded, and formed according to the structural drawing.
Structural Alignment
Overall dimensions, curves, symmetry, and connection points are checked.
Module Trial Fit
Critical modules are connected to verify installation direction, interface position, and dimensional fit.
LED Installation
Light strings are fixed according to the lighting layout and connected by electrical zone.
Surface Finishing
Glitter fabric, tinsel, and decorative components are installed.
Power-On Test
Light strings, connectors, power components, and lighting zones are checked.
Appearance Inspection
Body proportions, surface coverage, colors, and decorative component positions are inspected.
Packing Inspection
Modules, connectors, electrical parts, and installation hardware are checked before shipment.
The 5M snowman is packed as separate structural modules. Main steel sections, head components, decorative parts, and electrical components receive individual protection.
Buffering materials are added around steel contact points to reduce impact and abrasion during long-distance transport.
Glitter fabric, tinsel, hats, and exposed decorative areas receive separate protection against compression and snagging.
Protective film, cushioning materials, wooden frames, or wooden crates are selected according to product dimensions and transport method.
Container Loading Data
Overall Dimensions
Snowman Design
Colors
Surface Materials
Lighting
Electrical System
Structural Modules
Matching Decorations
A 5M snowman works as an entrance feature, central display, or large photo point. It can be combined with Christmas trees, reindeer, and gift boxes to build a complete winter scene.
Suitable for entrance plazas, winter-themed zones, night-tour routes, and visitor photo areas.
Suitable for shopping mall entrances, pedestrian districts, and open forecourts. The large silhouette remains clearly visible within building and pedestrian environments.
Used in winter night tours, seasonal lighting projects, and holiday-themed areas, with surrounding light installations designed to match the site.
Suitable for city squares, public parks, holiday event areas, and seasonal urban displays.
Size, color, lighting, and decorative details can be aligned with the visual system of a commercial event or branded installation.
Provide the following information for quotation and structural planning:
The steel structure is separated into modules. The main body, head, decorative components, and electrical parts are packed separately and shipped by sea freight.
Main welding is completed at the factory. Site work focuses on module connection and anchoring. Special structures follow the final installation drawing.
The anchoring method is selected according to ground type, product dimensions, wind conditions, and site requirements. Concrete surfaces can use steel base plates with anchor hardware.
Yes. Height, width, body proportions, and overall shape can be customized.
Yes. Colors, shapes, and surface materials can be adjusted to the project design.
Yes. Input voltage, plug type, and electrical components are configured according to the destination country and project specification.
Inspect the light strings, electrical connectors, and power components in the affected module. Faulty light strings or connection parts can be replaced by section.
Critical structural interfaces and module fit are checked during production. Large custom structures can receive project-specific trial assembly.
Disassemble the structure by module number, pack structural parts, electrical components, and decorative items separately, and store them in a dry warehouse.
Yes. It can be supplied with giant Christmas trees, reindeer, gift boxes, illuminated arches, and other light sculptures for one coordinated project.
The standard production period is 10–15 days. The final schedule is confirmed from order quantity and customization complexity.
The standard warranty is one year. Coverage follows the final product configuration and contract terms.
